Digital thickness gauge series module MDM

Home / Products / Digital thickness gauge series module MDM


Serie Modul MDM

Manufacturer: Wolf Messtechnik GmbH

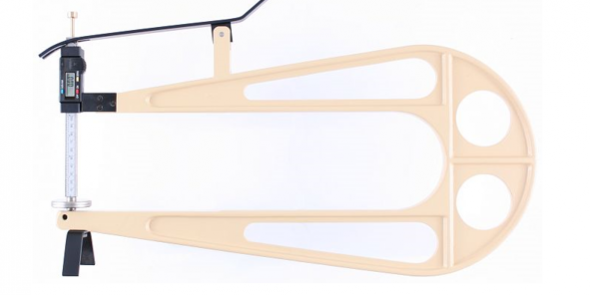

The “Modul” series of WOLF thickness gauges shows you the measuring result digitally and over large measuring ranges – up to 100 mm, with considerable measuring depths – up to 400 mm and a high accuracy up to 0.01 mm (switchable to 0.0005 inches) ,

Noteworthy for the good handling are the ergonomically advantageous arrangement of the Anlifthebels and the operator facing inclined position of the LC display, which thereby guarantees a favorable reading even with large measurement depth. Optionally, you can get our “modulus” thickness gauge with an RS-232 interface (USB converter available on request) so you can process the readings digitally. A data logger and the WOLF statistics software for PC finishing are available as accessories.

 Range in mm Range in mm
 MDM 820/1 0 – 50 0 – 200
 MDM 830/1 0 – 50 0 – 300
 MDM 835 0 – 75 0 – 350
 MDM 840 0 – 100 0 – 400
