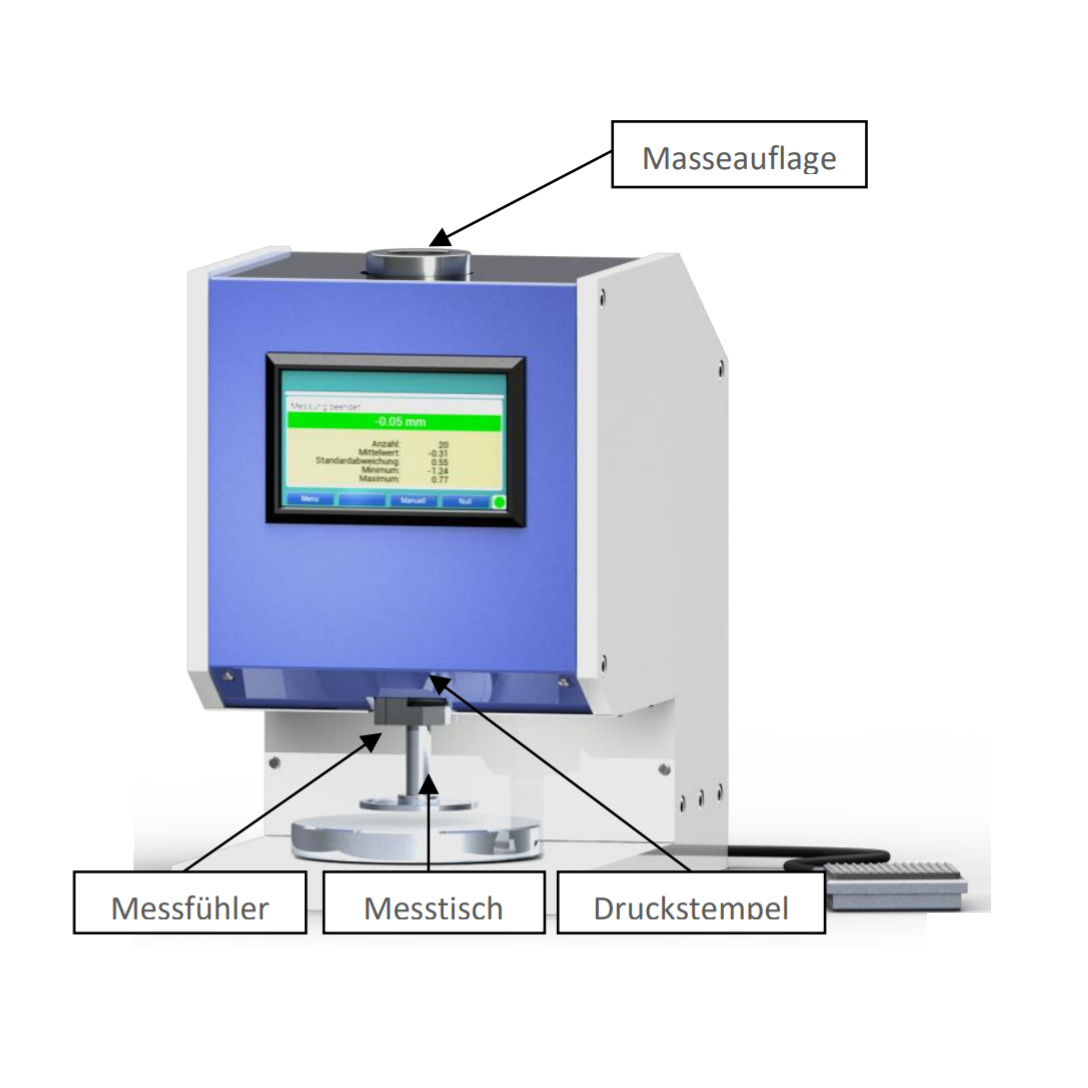

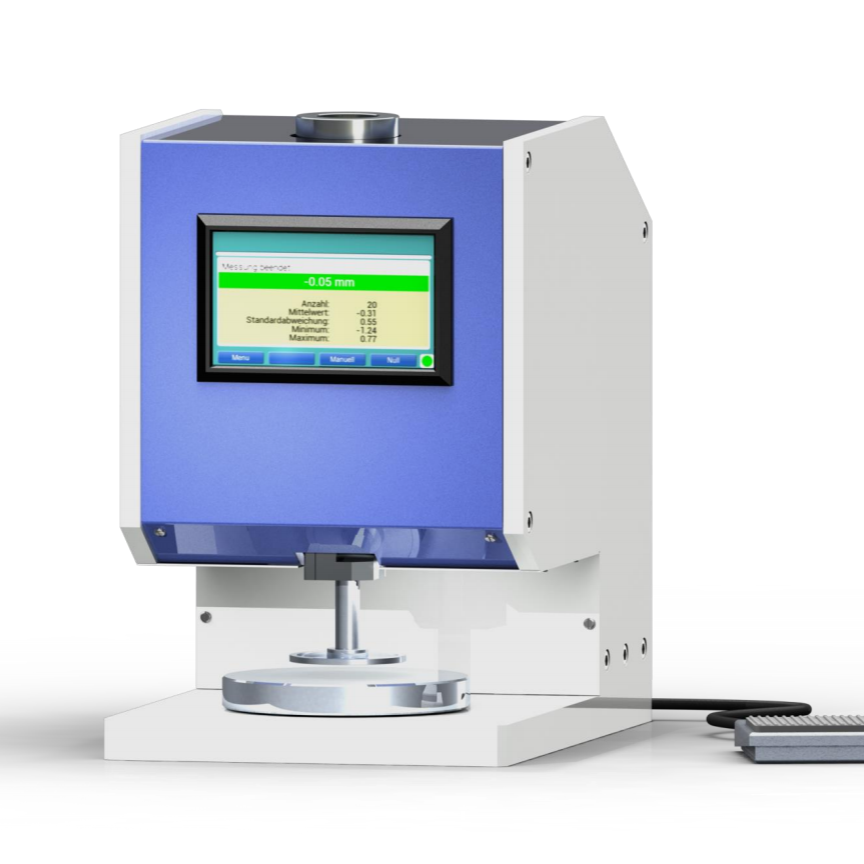

Thickness Gauging Apparatus DM 2006
Manufacturer: Wolf Messtechnik GmbH
Terrain:
The 2000 Series thickness gauges have a sturdy and rigid base frame with encapsulated, separate measurement setup. The devices are the first choice if you value high accuracy (up to 0.001 mm), simple operation, automatic operation and objective, reproducible measurement results.

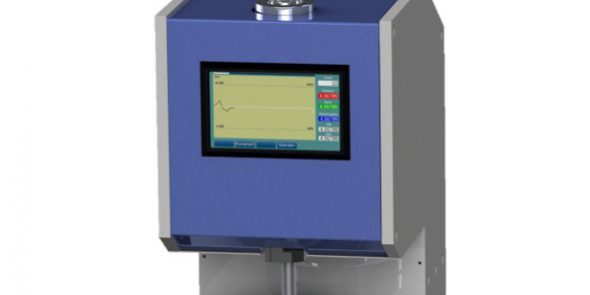

The DM 2010 is our standard measuring instrument which we offer you with measuring ranges 0 – 10 mm, 0 – 25 mm and
0 – 50 mm (or equivalents in inches, switchable) offer.
Technical Specifications
- Touchscreen with menu navigation in German or English
- Display lighting
- Statistics display
- Automatic zero point control
- Preselection of the measuring range
- Adjustable dwell time: 1-60 sec.
- Motorized button movement
- Connection for foot switch
- Digital interface
- Available scaling: 0.001 mm, 0.01 mm
- Possible measuring ranges: 0 – 10mm, 0 – 25mm
- Length x width x height (with measuring range 0 – 10 mm): 300 x 200 x 300 mm
- Weight with measuring range 0 – 10 mm: 24 kg
Available Models
DM-2006-T for Textiles
- Sensor: Ø 50,42 mm, 20 cm²
- Test Pressure: 0.1 kPa and 1 kPa
- Standard: DIN EN ISO 5084
DM-2006-V for normal Fleece
- Sensor: Ø 56,42 mm, 25 cm²
- Test Pressure: 0.1 kPa and 0,5 kPa
- Standard: DIN EN ISO 9073-2
DM-2006-G1 for Geotextiles
- Sensor: Ø 56,42 mm, 25 cm²
- Test Pressure: 2 kPa and 20 kPa
- Standard: DIN EN ISO 9863-1
DM-2006-G2 for Geotextiles
- Sensor: Ø 56,42 mm, 25 cm²
- Test Pressure: 2 kPa, 20 kPa and 200 kPa
- Standard: DIN EN ISO 9863-1
DM-2006-NW für Textile Fabrics
- Sensor: Ø 56,42 mm, 25 cm²
- Test Pressure: 0.5 kPa and1 kPa
- Standard: DIN EN ISO 53855
DM-2006-NW für Textile Fabrics
- Sensor: Ø 35,68 mm, 10 cm²
- Test Pressure: 5 kPa
- Standard: DIN EN ISO 53855
DM-2006-P* für Paper
- Sensor: Ø 16 mm, 2 cm²
- Test Pressure: 100 kPa
- Standard: DIN EN ISO 534
DM-2006-HY für Hygiene paper
- Sensor: Ø 35,68 mm, 10 cm²
- Test Pressure: 2 kPa
- Standard: DIN EN ISO 12625-3
DM-2006-HY für Hygiene paper
- Sensor: Ø 56,42 mm, 25 cm²
- Test Pressure: 2 kPa
- Standard: DIN EN ISO 54540
DM-2006-L2 für Leather
- Sensor: Ø 10 mm, 0,785 cm²
- Test Pressure: 49,1 kPa
- Standard: DIN EN ISO 2589
DM-2006-Gi für Rubber
- Sensor: Ø 35,68 mm, 10 cm²
- Test Pressure: 5 kPa
- Standard
DM-2006-F* für Foils
- Sensor: Ø 10mm, 0,785 cm²
- Test Pressure: 0,5 N
- Standard: DIN EN ISO 4593
Range of Functions
- Resistive 5 ″ TFT touchscreen
- Motorized button movement
- Display lighting
- Unit mm / inch can be changed
- Language selection German / English
- Aut. Zero point control
- Single measurement
- Preselection measuring range (stroke level)
- Adjustable dwell time

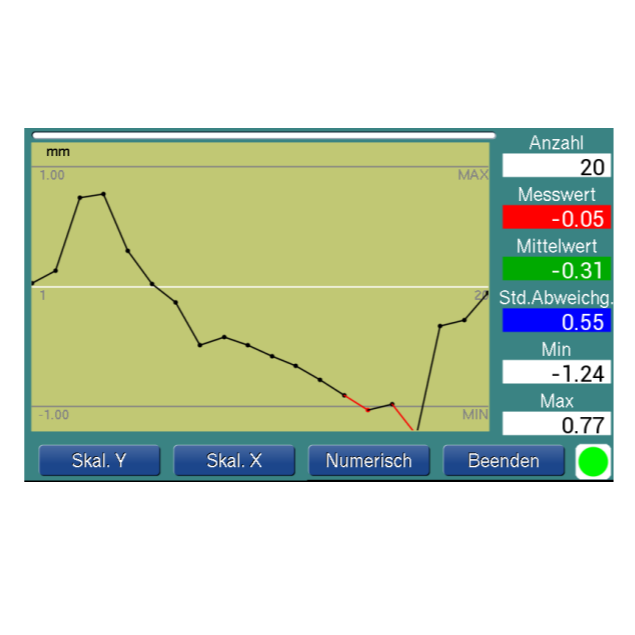

- Statistical evaluation numerically

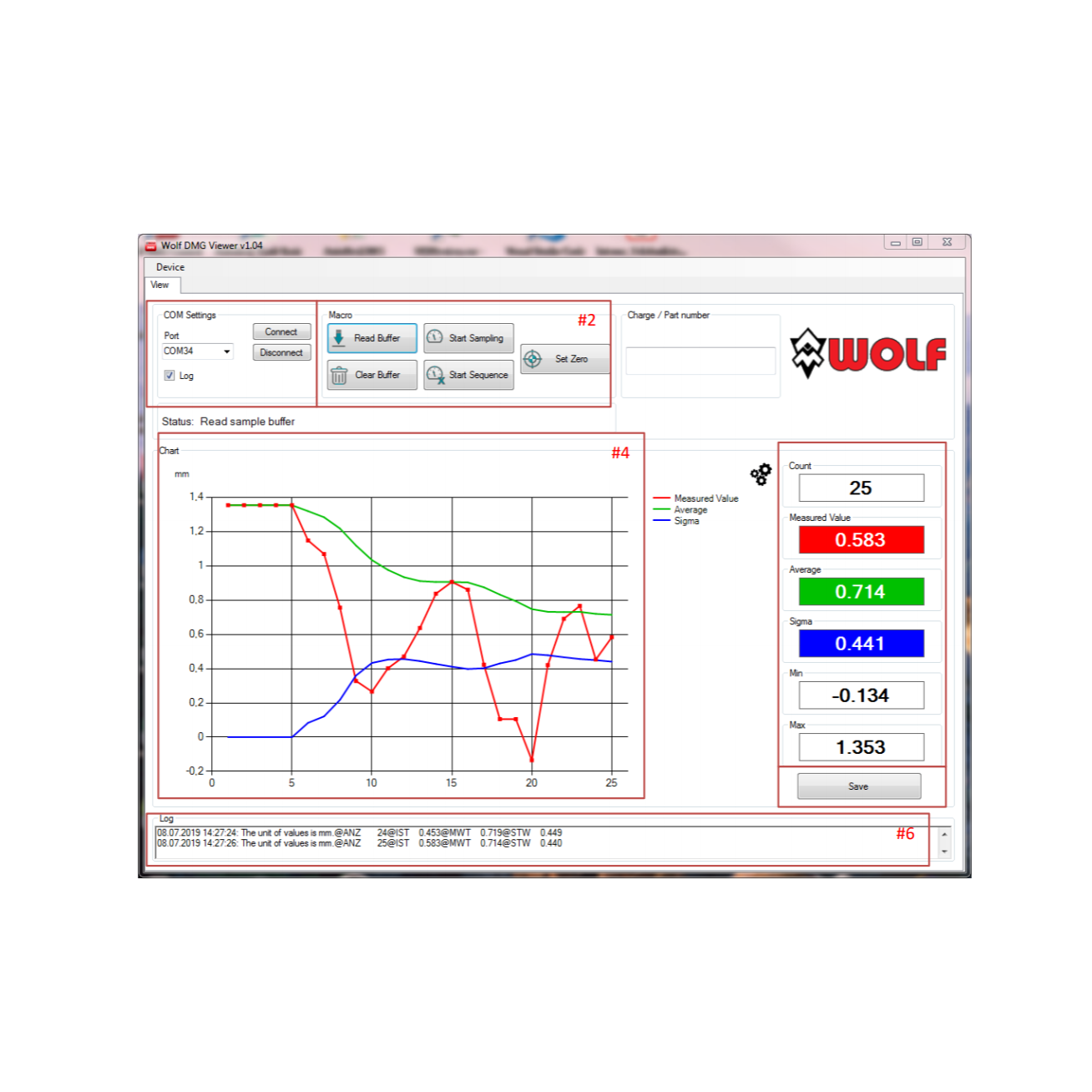

- Evaluation software Pro (optional)
- Digital interface
- Connection for foot switch
- Available scaling: 0.01 – 0.0001 mm
- Possible measuring ranges: 0-10 mm, 0-25 mm, 0-50 mm
- L x W x H with measuring range: 300 x 200 x 300
- Weight in KG with a measuring range of 0-25mm: approx. 23kg
