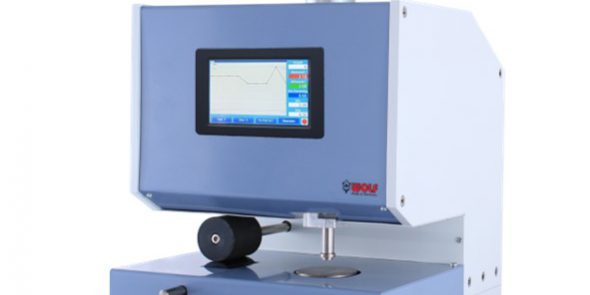

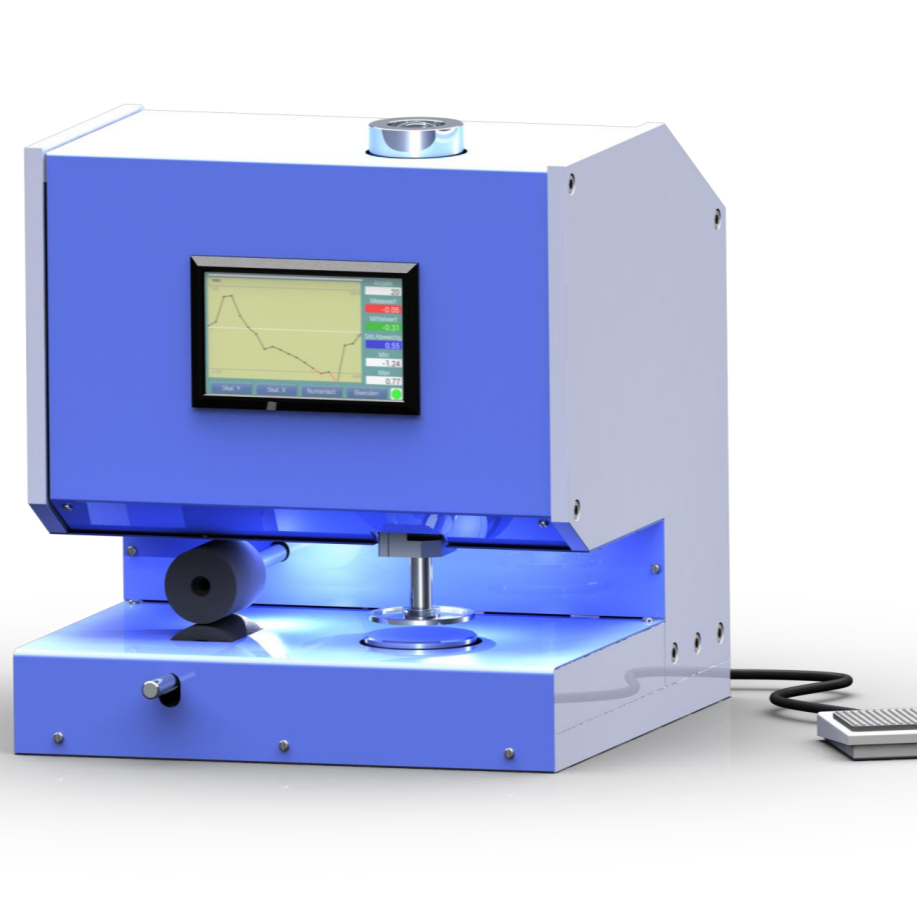

Thickness Gauging Apparatus DM 2020
Manucturerer: Wolf Messtechnik GmbH
Usage:
The thickness gauges of the model series 2000 have a stable and rigid basic structure with an encapsulated, separate measuring structure. The devices are the first choice if you value high accuracy (up to 0.001 mm), simple operation, automatic operation and objective, reproducible measurement results. The DM 2020 combines all the advantages of the DM 2010, but also has the option of material feed. You can set the feed length and the feed speed.
Technical Specifications
- Touchscreen with menu navigation in German or English
- Display lighting
- Statistics display
- Automatic zero point control
- Preselection of the measuring cycles
- Preselection of the measuring range
- Adjustable dwell time: 1-60 sec.
- Motorized button movement
- Connection for foot switch
- Automatic material feed, adjustable
- Digital interface
- Available scaling: 0.001 mm, 0.01 mm
- Possible measuring ranges: 0 – 10mm, 0 – 25mm
- Length x width x height (with measuring range 0 – 10 mm): 300 x 300 x 320 mm
- Weight with measuring range 0 – 10 mm: 31.5 kg
Available Models
DM-2020-T for Textiles
- Sensor: Ø 50,42 mm, 20 cm²
- Test Pressure: 0.1 kPa and 1 kPa
- Standard: DIN EN ISO 5084
DM-2020-V for normal Fleece
- Sensor: Ø 56,42 mm, 25 cm²
- Test Pressure: 0.1 kPa and 0,5 kPa
- Standard: DIN EN ISO 9073-2
DM-2020-G1 for Geotextiles
- Sensor: Ø 56,42 mm, 25 cm²
- Test Pressure: 2 kPa and 20 kPa
- Standard: DIN EN ISO 9863-1
DM-2020-G2 for Geotextiles
- Sensor: Ø 56,42 mm, 25 cm²
- Test Pressure: 2 kPa, 20 kPa and 200 kPa
- Standard: DIN EN ISO 9863-1
DM-2020-NW für Textile Fabrics
- Sensor: Ø 56,42 mm, 25 cm²
- Test Pressure: 0.5 kPa and1 kPa
- Standard: DIN EN ISO 53855
DM-2020-NW für Textile Fabrics
- Sensor: Ø 35,68 mm, 10 cm²
- Test Pressure: 5 kPa
- Standard: DIN EN ISO 53855
DM-2020-P* für Paper
- Sensor: Ø 16 mm, 2 cm²
- Test Pressure: 100 kPa
- Standard: DIN EN ISO 534
DM-2020-HY für Hygiene paper
- Sensor: Ø 35,68 mm, 10 cm²
- Test Pressure: 2 kPa
- Standard: DIN EN ISO 12625-3
DM-2020-HY für Hygiene paper
- Sensor: Ø 56,42 mm, 25 cm²
- Test Pressure: 2 kPa
- Standard: DIN EN ISO 54540
DM-2020-L2 für Leather
- Sensor: Ø 10 mm, 0,785 cm²
- Test Pressure: 49,1 kPa
- Standard: DIN EN ISO 2589
DM-2020-Gi für Rubber
- Sensor: Ø 35,68 mm, 10 cm²
- Test Pressure: 5 kPa
- Standard
DM-2020-F* für Foils
- Sensor: Ø 10mm, 0,785 cm²
- Test Pressure: 0,5 N
- Standard: DIN EN ISO 4593
Range of Functions
- Resistive 5 ″ TFT touchscreen
- Motorized button movement
- Display lighting
- Unit mm / inch can be changed
- Language selection German / English
- Aut. Zero point control
- Single measurement
- Preselection of measuring cycles (automatic measurements)
- Preselection measuring range (stroke level)
- Adjustable dwell time
- Adjustable min./max. Limits
- Statistical evaluation numerically
- Statistical evaluation linear diagram
- Aut. Material feed (variably adjustable)
- Including evaluation software Pro
- Color selection on the touchscreen
- Digital interface
- Connection for foot switch
- Available scaling: 0.01 – 0.0001 mm
- Possible measuring ranges: 0-10 mm, 0-25 mm, 0-50 mm
- L x W x H with measuring range: 300 x 300 x 320
- Weight in KG with measuring range 0-25mm: 31.5
