Zehntner ZGM 1120

Categories: Gloss Measurement, Foil, Automotive, paint, varnish, plastics as well as manufacturing industry
Manufacturer: Proceq / Zehntner

  Contact Us.

Usage:

The ZGM 1120 is a portable precision glossmeter with smallest
dimensions for measurement of all gloss ranges of all surfaces from matt to high gloss, even on very confined surfaces

Variants:

  • Geometry: 60°
  • Geometry: 20°/60°
  • Geometry: 20°/60°/85°

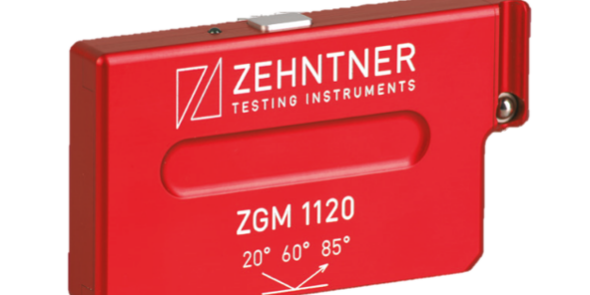

Zehntner ZGM 1120

  • Portable precision glossmeter with smallest dimensions for measurement of all gloss ranges of all surfaces from matt to high gloss, even on very confined surfaces
  • The ZGM 1120 opens the gateway to a more efficient and productive quality control: the first gloss measuring sensor transmitting the measuring data directly to the computer via USB-interface
  • Latest technology and very easy to use
  • Useful for the various needs of production and demanding requirements in the laboratory
  • Factory calibration with calibration standard traceable to an ISO 17025 accredited laboratory

Features

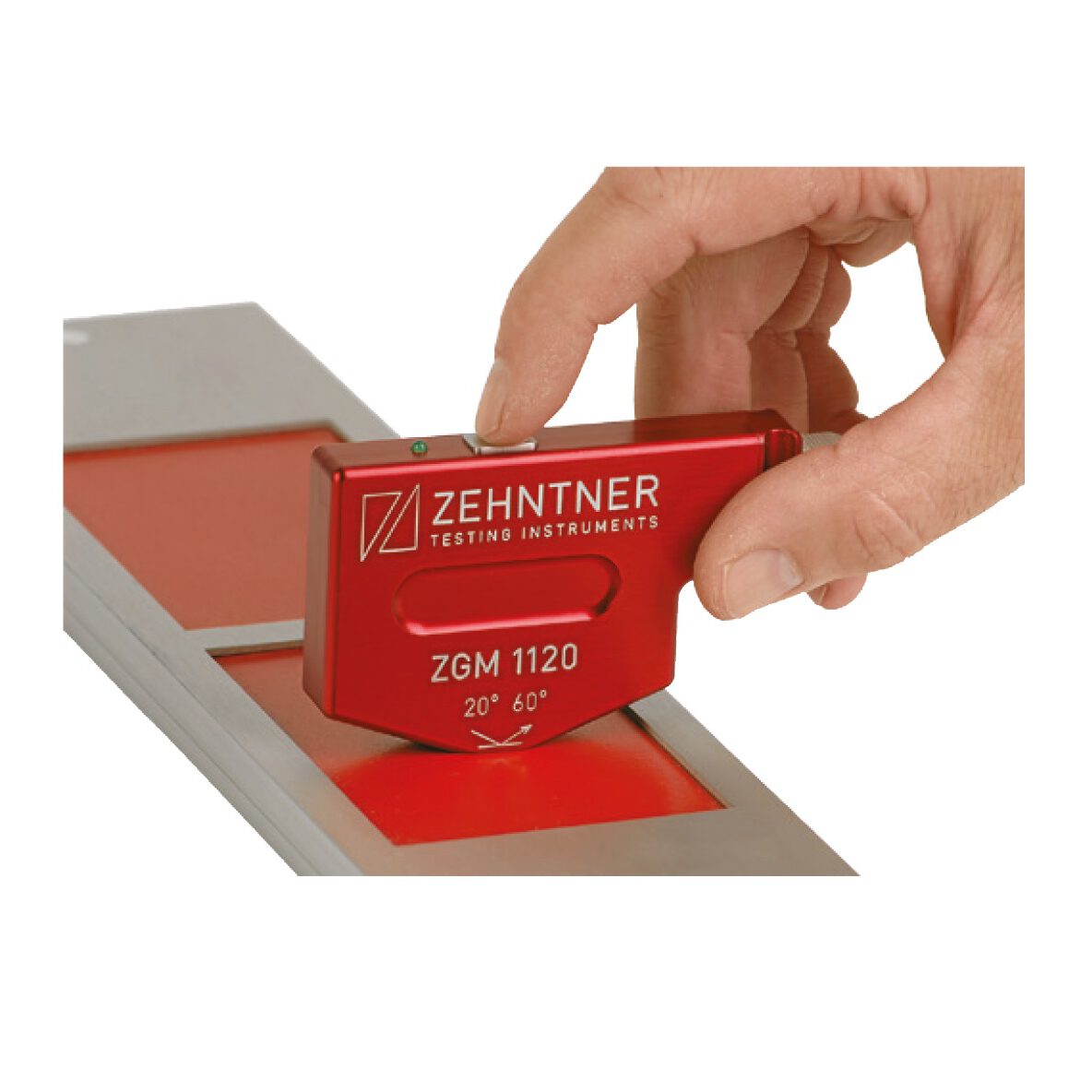

  • Applicable on the smallest of parts and on very confined areas
  • Sturdy aluminium design, first-class quality, small dimensions,lightweight, available as single, dual and triple angle versions
  • Intuitive menu guidance in several languages: German, English,French, Italian, Spanish and Swedish, further languages can beincluded on request
  • Intelligent and user-friendly from the very beginning: startingat the calibration, continuing through the whole measuringprocedure up to data analysis
  • Special geometries in accordance with Tappi or DIN for thepaper industry, available as single and dual angle versions
  • RS232 interface is optionally available
  • Optional versions with measuring distance
  • Precise results within seconds
  • Powerful stray light compensation allows exact measurementsof transparent objects
  • Easy control, operation and display with a computer using the„GlossTools“ software.
  • Featuring single, multi measurements, specially designedautomated series of measurements to user specifications andeven continuous measurements (min. interval of 1.5 s)
  • Simultaneous display of up to 3 geometries as well as up to 3statistical values
  • Definition of limit and reference values for gloss rangemeasurements result in the „pass/fail“ information
  • Automatic, adjustable prompt for calibration
  • Automatic standard recognition
  • Calibration unit ensures correct positioning during calibrationand protects the calibration standard as well as the optics
  • Power is supplied via the USB-interface
  • Easy evaluation of the measuring data e.g. with Microsoft Excelas well as easy transfer of the measuring data to in-housedatabases
  • A complete test report in pdf-format can be created by use ofour „GlossTools“ software
  • Long-lasting LED illumination system
  • Supplied in a handy carrying case for protection during storageand transportation

Measuring, opening and bearing areas ZGM 1120

For multi-angle versions please refer to the biggest dimensions for the opening and bearing area.



Baseplate (bearing area) with 20° geometry:

  • Opening area (LxW): 8 mm x 5 mm (0.3“ x 0.2“)
  • Measuring area (LxW): 4.2 mm x 2 mm (0.17“ x 0.08“)
  • Bearing area (LxW): 15.6 mm x 14.8 mm (0.61“ x 0.58“)

Baseplate (bearing area) with 60° geometry:

  • Opening area (LxW): 8 mm x 5 mm (0.3“ x 0.2“)
  • Measuring area (LxW): 4.7 mm x 2 mm (0.19“ x 0.08“)
  • Bearing area (LxW): 15.6 mm x 14.8 mm (0.61“ x 0.58“)

Baseplate (bearing area) with 85° geometry:

  • Opening area (LxW): 40 mm x 6 mm (1.6“ x 0.24“)
  • Measuring area (LxW): 15 mm x 2 mm (0.59“ x 0.08“)
  • Bearing area (LxW): 84 mm x 14.8 mm (3.3“ x 0.58“)

Standard delivery

  • 1 glossmeter
  • 1 calibration standard
  • 1 microfiber cleaning cloth
  • 1 USB-cable
  • 1 „GlossTools“ software
  • 1 certificate of manufacturer
  • 1 certificate of calibration
  • 1 carrying case

Options

  • ACC193 „GlossTools“ programming interface (.NET API)
  • ACC194 RS232-protocol
  • ACC195 RS232-adaption

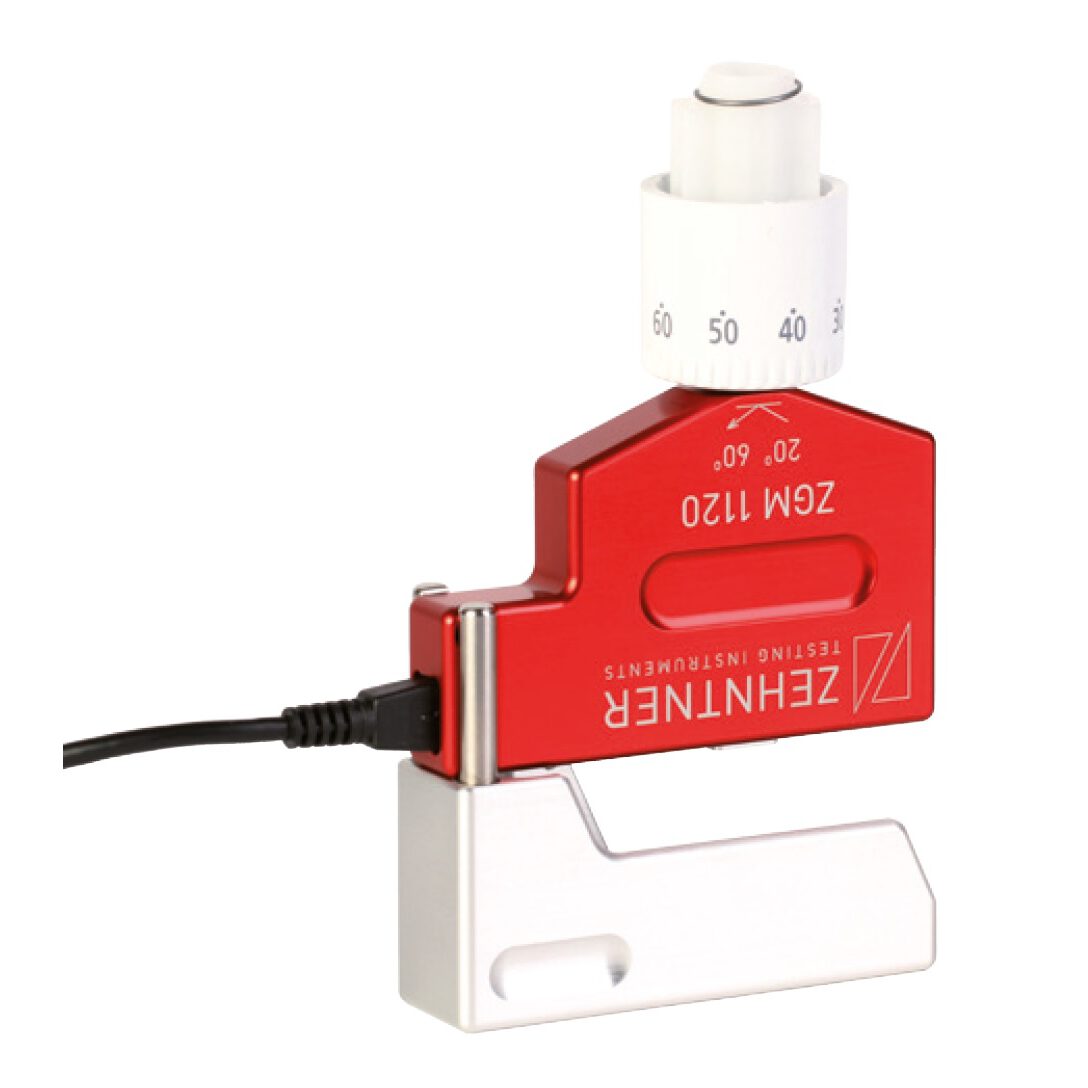

  • ACC742 mounting device
  • ACC207 USB-foot switch for starting a measurement
  • ACC490 Labview programming interface
  • ACC1475 adding a viewing window to ZGM 1120
  • Special custom-made holders for reproducible measurements on uneven surfaces

Technical specification:

  • Measuring range: 0 – 2‘000 GU
  • Measuring units: GU, %
  • Repeatability: 0 – 199.9 GU: 0.1 GU, 200 – 2‘000 GU: 0.1%
  • Reproducibility: 0 – 199.9 GU: 0.5 GU, 200 – 2‘000 GU: 0.4%
  • Measuring sensor adaption: V(l)
  • Interface: USB Mini-B
  • Light source: LED
  • Power supply: über USB
  • Calibration: traceable to an ISO 17025 accredited laboratory
  • Operating system: Windows® 10, Windows® 8, Windows® 7, Windows Vista®, Windows® XP SP2 or later
  • Operating system: according to „introduction gloss“
  • Warranty: 2 Years
