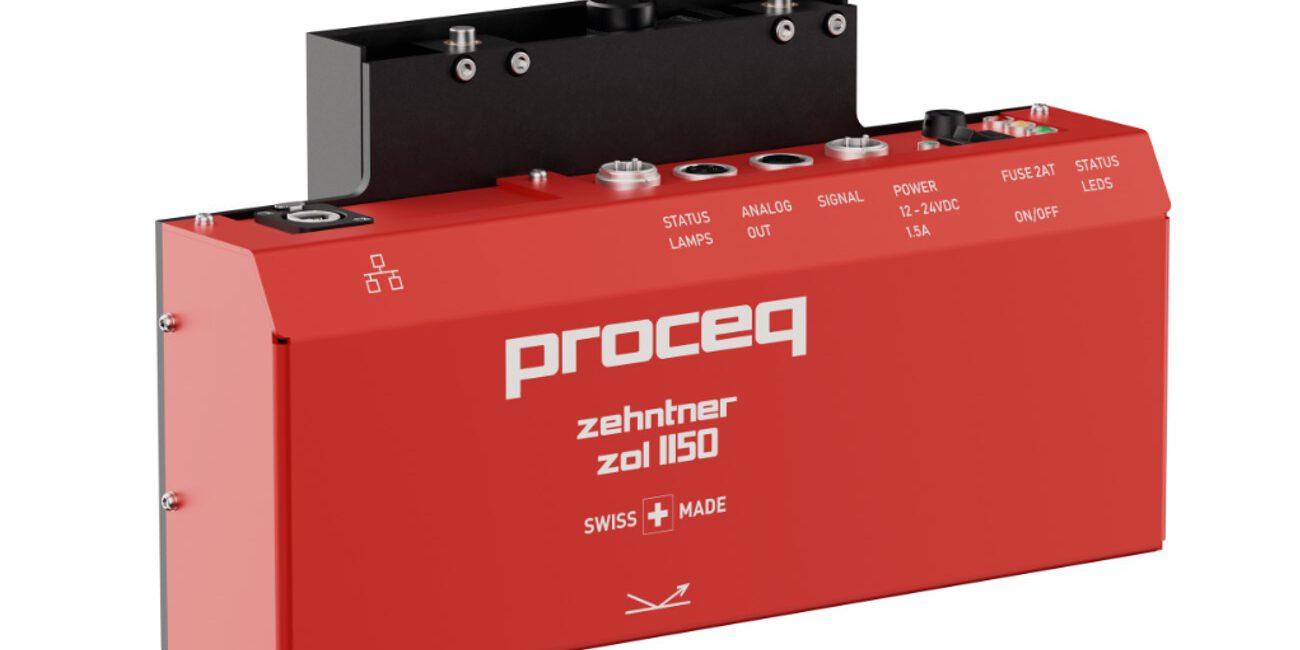

Zehntner ZOL 1150

Home / Products / Glossmeters / Zehntner ZOL 1150

Zehntner ZOL 1150

Proceq / Zehntner ZOL 1150

Categories: Gloss Measurement, Foil, Automotive, paint, varnish, plastics as well as manufacturing industry
Manufacturer: Proceq / Zehntner

  Contact Us.

Usage:

Enabling product manufacturers to monitor quality – automatically and continuously. Inline digital glossmeter with superior accuracy, easy to integrate and use and
unmatched productivity. Coatings, plastics and related materials, calculation of reflection haze H in accordance with ASTM D4039 and for In-line production use

Variante:

  • 20°, 60°, 85° (depending on version)

Device parameters

  • Geometries: 20°, 60°, 85° (depending on the version)
  • Measuring accuracy: 0 – 199.9 GU: ≈0.2 GU, 0 – 1999 GU: ≈2 GU*
  • Measuring area: 20°: 22 mm x 20 mm (0.87” x 0.79”), 60°: 29 mm x 14 mm (1.14” x 0.55”), 85°: 114 mm x 11 mm (4.49” x 0.43”)
  • Interfaces: Ethernet
  • Analog output: 0-10 V, 0-20 mA or 4-20 mA
  • Light source: LED
  • Power supply: 24 VDC, ±10%
  • Power consumption: max. 18 W
  • Operating Temperature: -10°C to + 50°C (12 °F to 122 °F)
  • Measuring distance to: 20°/60°: 10 mm (0.39”)
  • material Measuring position: 85°: 2.7 mm (0.11”)
  • Dimensions measuring head: 20°/60°: 339 mm x 142 mm x 243 mm, 20°/60°: 13.35” x 5.59” x 9.57”, 85°: 339 mm x 142 mm x 250 mm, 85°: 13.35“ x 5.59“ x 9.84“
